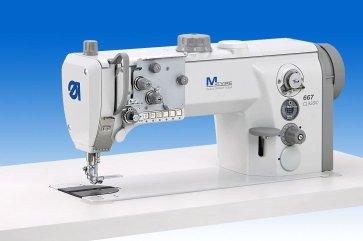

The new M-TYPE lockstitch flat bed machine with XXL horizontal hook as CLASSIC Silverline

• XXL horizontal hook and sewing kinematics for high seam quality, secure and tight stitch formation with thread sizes up to max. Nm 10/3
• The large clearance (335 mm wide and 125 mm high) facilitates the handling of large-area workpieces
• Extremely high sewing foot lift
• The high top feed stroke allows a safe climbing over differently high material plies
• High efficiency owing to automatic functions like thread trimming, automatic backtacking and pneumatic sewing foot lift

Typical field of application
Universal sewing operations in the field of medium-heavy duty applications

Performance features

• Max. stitch length 9 mm
• Max. sewing speed 3,000 stitches/min.
• Max. alternating sewing foot stroke 9 mm
• Max. sewing foot lift 20 mm
