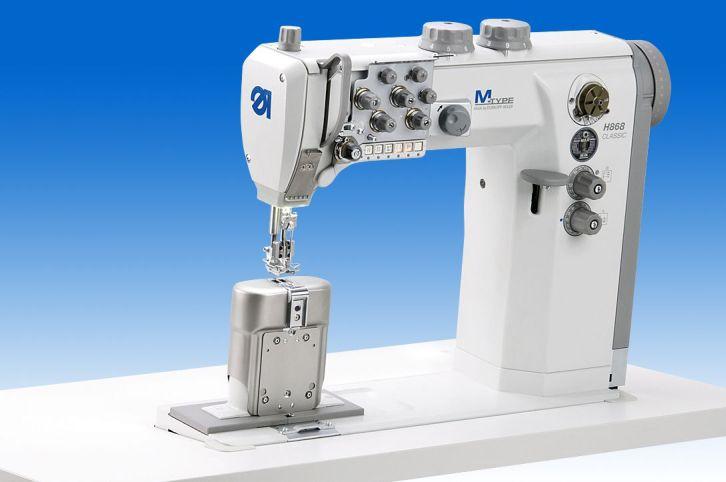

M-TYPE H868 – twin needle post bed machine as reinforced version

Your advantages

• High efficiency owing to automatic functions like automatic backtacking and pneumatic sewing foot lift
• Powerful and effective feeding system with bottom feed, needle feed and alternating top feed
• Up to 12 mm long stitches for standard seams and decorative topstitching
• Needle distances up to 30 mm
• The extremely high sewing foot lift up to 25 mm facilitates the feeding and removing of bulky workpieces
• The sewing foot stroke up to 9 mm allows the safe climbing over differently high material plies
• New hook technology with 3XL bobbin (40 mm bobbin diameter) for thread sizes up to Nm 8/3 max. or braided thread with a thickness of 1.2

Typical field of application
Topstitching seams in medium to heavy-weight workpieces

Performance features

• Max. stitch length 12 mm
• Max. sewing speed 1,800 stitches/min.

Class H868 is also available as right hand post bed single needle version: H868-190361
